Description
Note
We have released the Raspberry Pi High Quality Camera and this lens is supported by this camera.
Features
- Narrow angle of view suitable for viewing distant subjects
- Adjustable aperture from F1.4
- Adjustable focus ring to better focus subjects
- Thumbscrew Adjustment for easy fitting
- Front and back covers for protection
Description

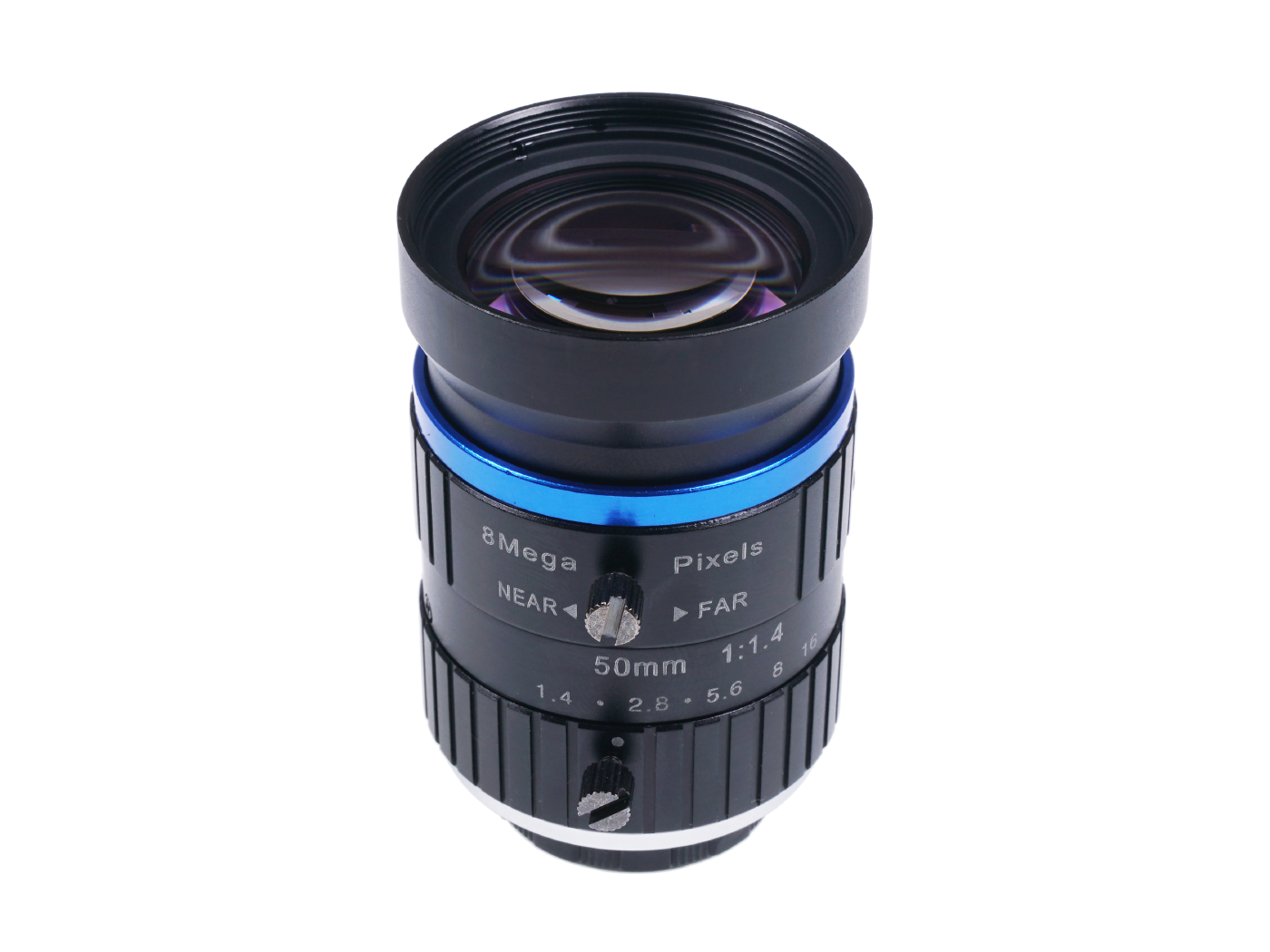

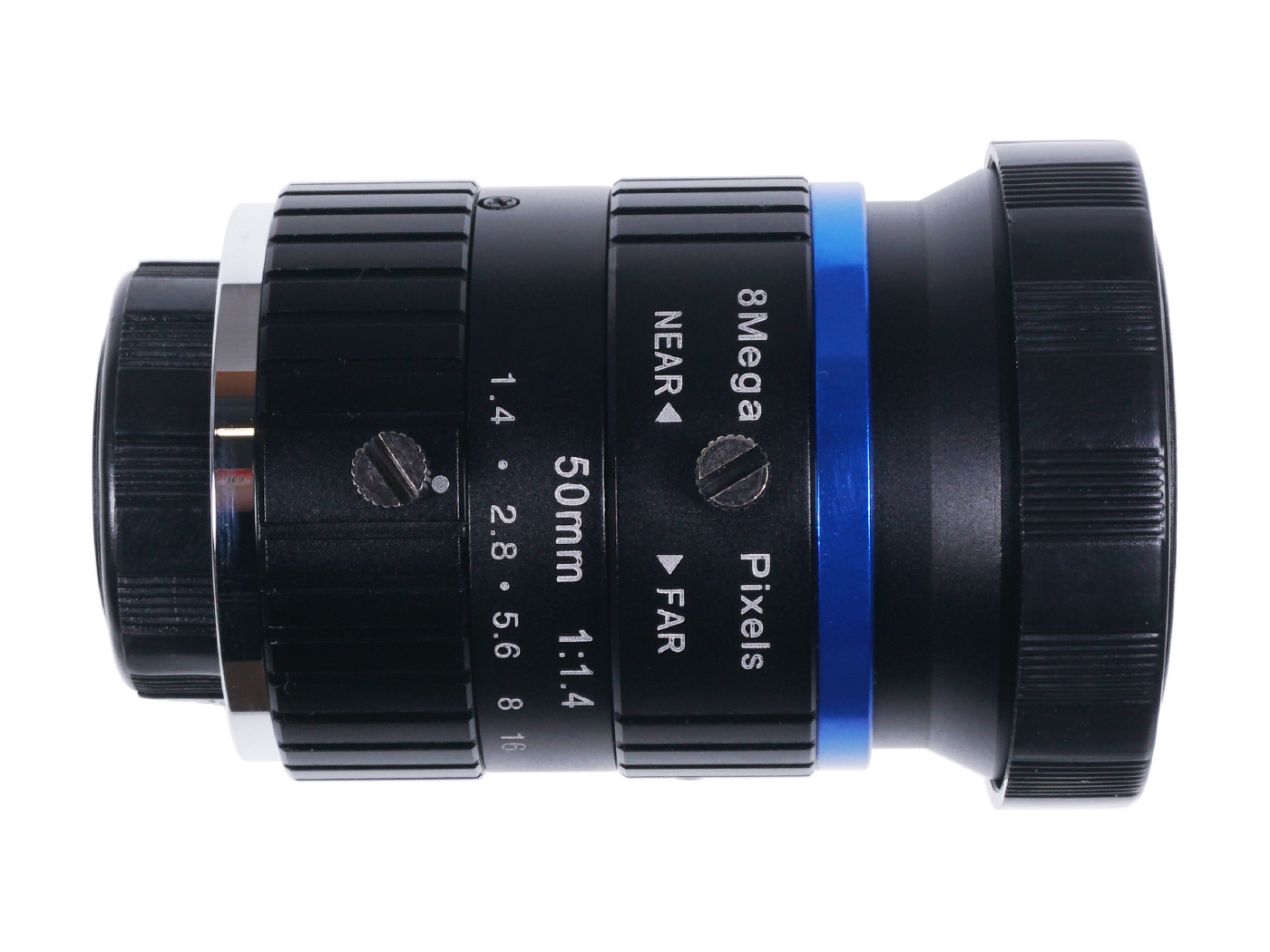

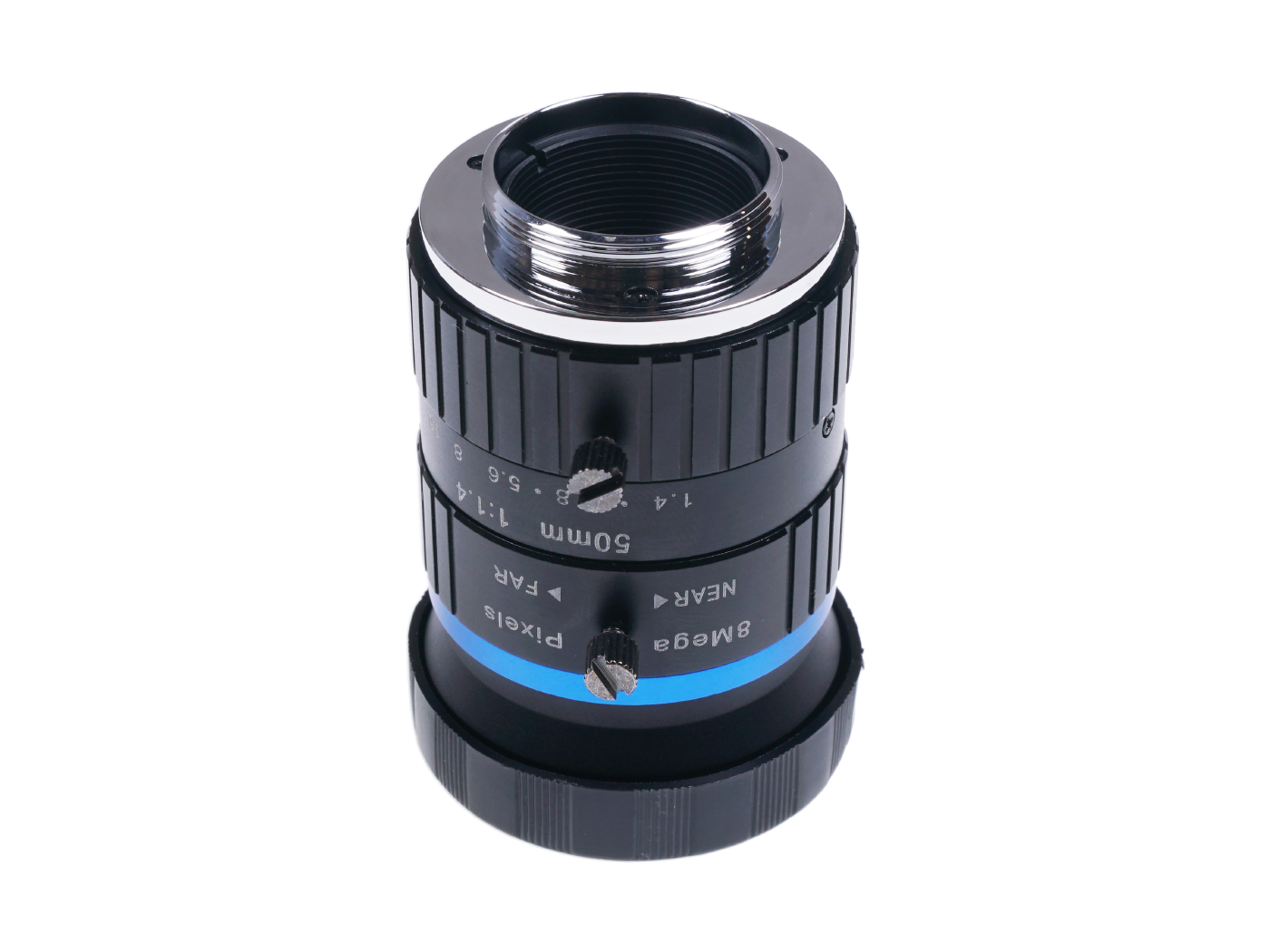

This is a 50mm 8MP Telephoto Lens which is suitable to use with the Raspberry Pi High Quality Camera. It has a narrow angle of view suitable for viewing subjects located far away. It has an adjustable aperture ring from F1.4. The lens can be easily screwed into the Raspberry Pi High Quality Camera. Also, it comes with front and back covers for protection when it’s not in use.
Specifications
| Image Format | 1″ |
|---|---|
| Focal Length | 50mm |
| Back Focal Length | 17.53mm |
| Optical Length | 69.53mm |
| Resolution | 8 Megapixel |
| Aperture | F1.4 – F16 |
| Mount | C |
| Field of View |
1“ – 14.5°x10.8° 2/3“ – 10°x7.5°
1/1.8“ – 8.2°x6.2° 1/2“ – 7.3°x5.5°
|
| Min Object Distance | 0.3m |
| Focus | manual |
| Iris | Manual |
| DIstortion | -0.25% |

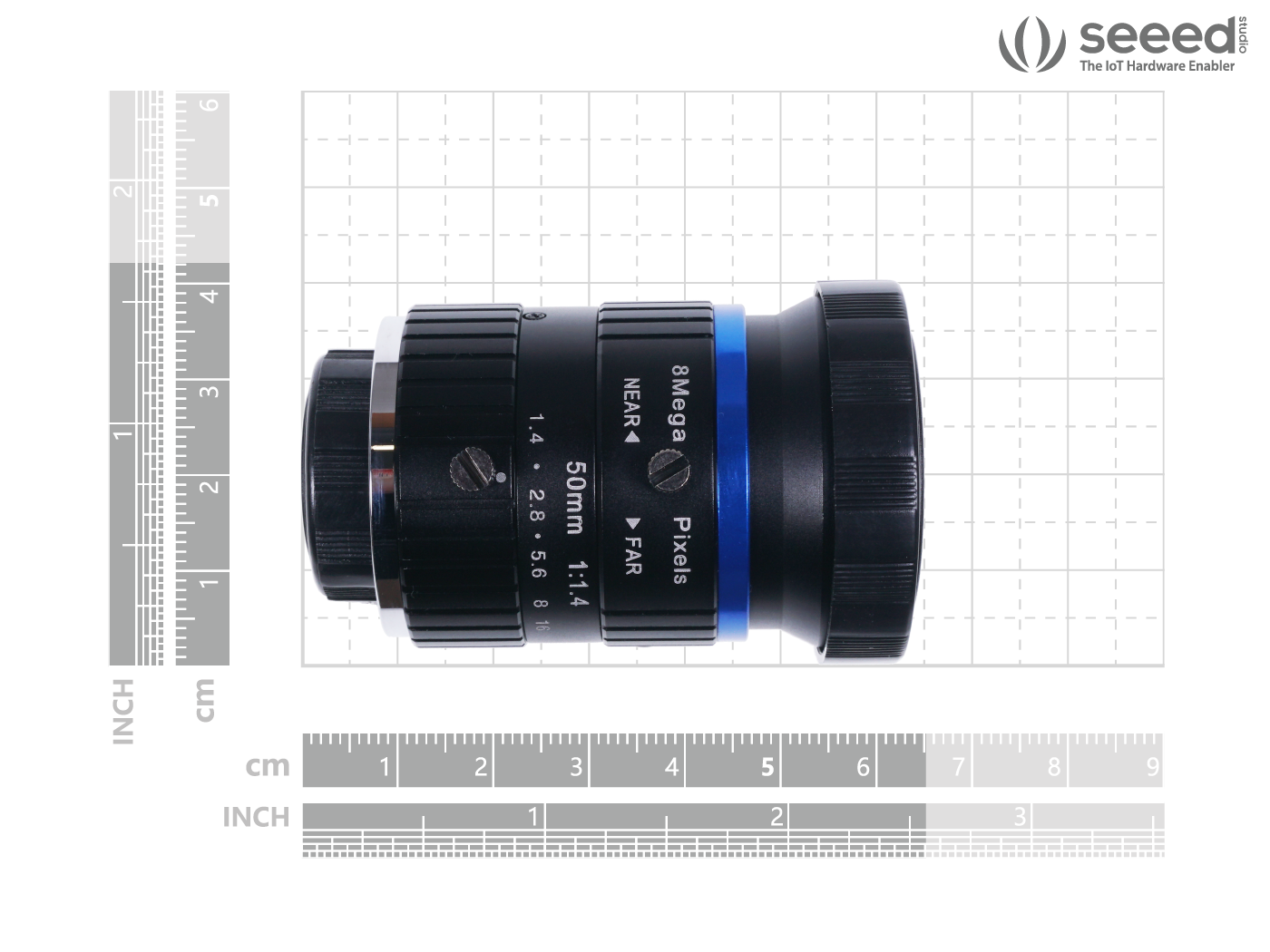

| Dimensions (Diameter,Height) | 39, 52mm |
Comparison of different lenses compatible with Raspberry Pi High Quality Camera
| 113990818 | 101990643 | 114992274 | 114992275 | 114992276 | 114992278 | |
|---|---|---|---|---|---|---|
| Image Format | 1/2″ | 1″ | 1/2″ | 1/2″ | 1″ | 1/2.3″ |
| Focal Length | 6mm | 16mm | 25mm | 35mm | 50mm | 8-50mm |
| Resolution | 3 Megapixel | 10 Megapixel | 10 Megapixel | 10 Megapixel | 8 Megapixel | 3 Megapixel |
| Aperture | F1.2 | F1.4 to F16 | F1.4 to F16 | F1.7 to F16 | F1.4 to F16 | F1.4 to F16 |
| Mount Type | CS | C | C | C | C | C |
| Angle of View | 63° | 1″ 44.6°× 33.6° 2/3″ 30.0°× 23.2° 1/1.8” 24.7°× 18.6° 1/2″ 21.8°× 16.4° |
19.6° | 14.3*10.7° | 14.5*10.9° | Wide: 41.8°x30.8° / Tele: 6.42°x4.80° |
| Minimum Object Distance | 0.2m | 0.2m | 0.3m | 0.35m | 0.5m | 0.5m |
Parts List
1 x 50mm 8MP Telephoto Lens for Raspberry Pi High Quality Camera with C Mount
