7 Segment Display – 5 Inches – Red

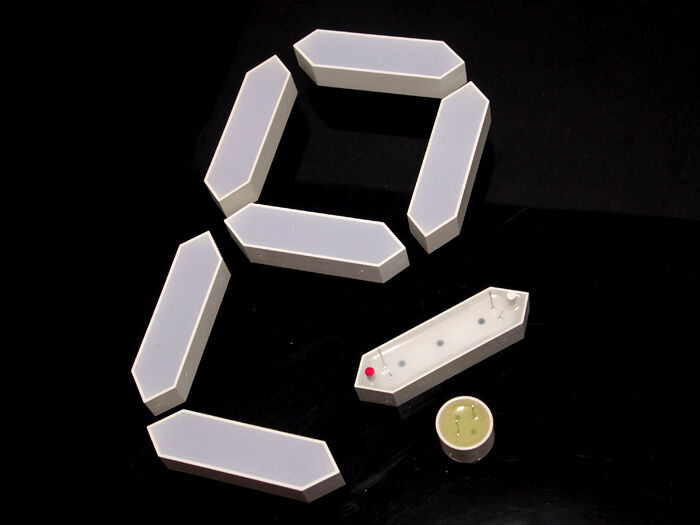

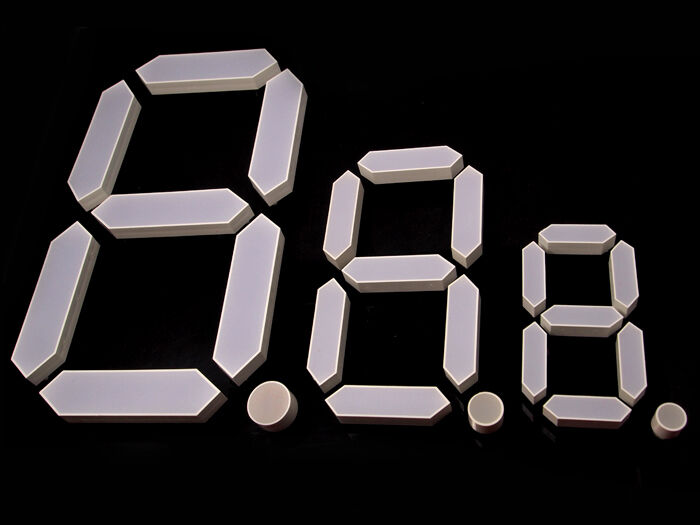

Find segments in digital displays an interesting material to create art work with?    Then look no further than our seven-segment digital building blocks.  They allow you to design words, numbers, or unique patterns.  One unit of this product includes 3 horizontal segments and 4 vertical segments, enough to build the number “8” or whatever else you think of.  Order more if you want to make a larger pattern.



Features

• Easy to assemble
• RoHS compliant
• ESD 2000 V
• Free style display



Specification

• Diameter : 15 mm
• Power Dissipation Per Segment ：45 mW
• Reverse Voltage Per Segment：5 V
• Forward Voltage Per Segment：9 V (I = 20 mA)
• Continuous Forward Current Per Segment：25 mA
• Peak Forward Current Per Segment：80 mA
• Operating Temperature Range：-20 °C – 80 °C
