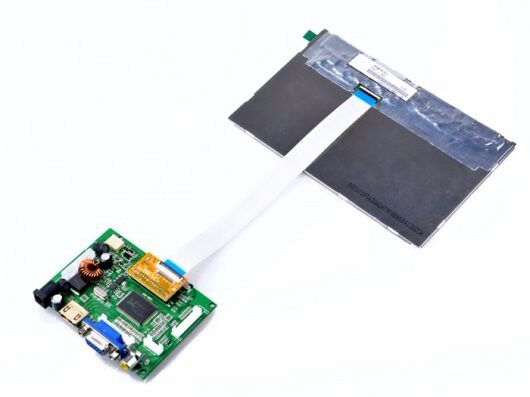

7 Inch HDMI 1280×800 IPS Display

Description

This 7 inch High-resolution 1280*800 IPS LCD display module kit is especially designed as a monitor for Raspberry Pi 3, Pi 2 Model B and Raspberry Pi B+ B A+.

For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to the native 1280×800 in case it doesn’t detect the resolution properly. The easiest way to edit the config.txt is to put the Pi TF card into an every day computer and edit config.txt with any text editor and save.

Features

• Screen size: 7 inch LCD

• Operating voltage: 7.5V-12V (current requirement 1A-2A)

• Rated power: 6-7W

• Signal input: 2 AV + VGA + HDMI (HDMI 1.2)

• Resolution: 1280 * 800,

• Plug and Play: Support

• OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese

• Control: Multi-function OSD operation or potentiometer adjust the brightness and color

• Features: Using mature program, clear display

• Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format

Specification

• ŸDisplay size: 7 inch

• Touch screen: Not support

• Resolution : 1280(RGB)×800

• Display Mode : HS-IPS, Normally Black, Transmissive

• Outline : 161.6×105.8×4.85 mm

• Active Area : 150.72×94.2 mm

• Brightness : 690 cd/m2 (Typ.)

• Contrast Ratio : 800:1 (Typ.)

• Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)

• Display Colors : 262K (6-bit)

• Lamp Type : WLED

• Signal Interface :LVDS (1 ch, 6-bit) , 30 pins

• Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

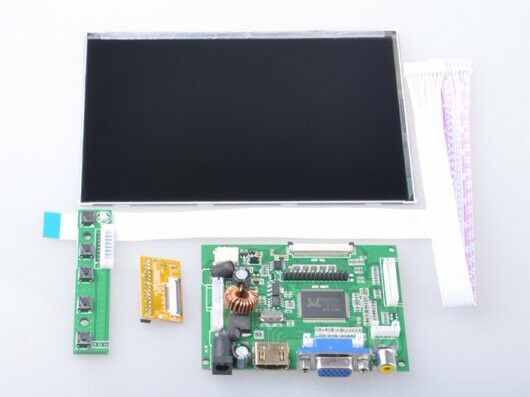

Part List

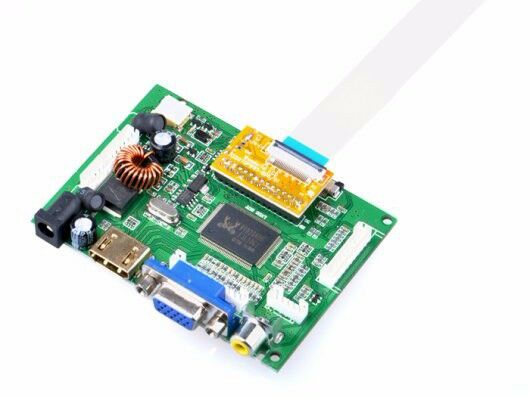

• 1× HDMI+VGA+2AV LCD controller board

• 1× 7inch 1280×800 IPS LCD panel

• 1× LVDS Cable with adapte

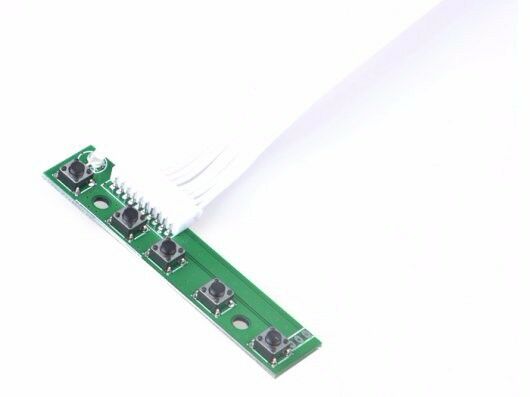

• 1× Keyboard with Wire

Related Products

PiShow 2.4 Inch Resistive Touch Display	PiShow 2.8″ Resistive Touch Display	5 Inch HDMI Display with USB TouchScreen

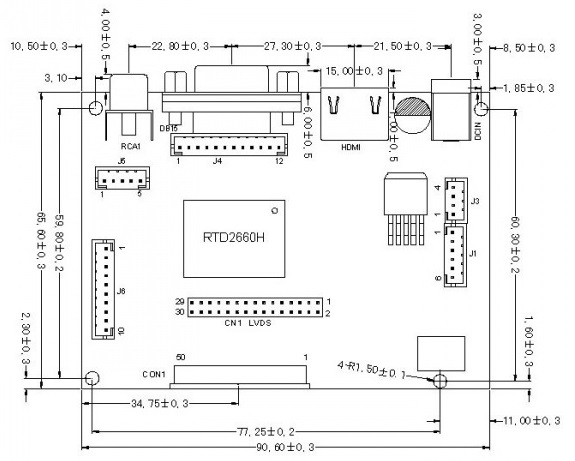

Screen ontroller Dimension:

If you are willing to know more information about Raspberry Pi display, please view the table as follow.
