Description
Features
- Plug & Play with XIAO ePaper Driver Boards: Natively compatible with a series of 24-pin ePaper displays through ePaper Display Board EE04, ePaper Display Board EN04, ePaper Driver Board, and ePaper Breakout Board as ready-to-use controller options, offering features such as optional battery connector or user button to accelerate prototyping and project development.
- Exceptional Readability: The display’s reflective properties ensure effortless legibility of text and images in different lighting environments.
- Ultra–Low Power Consumption: The ePaper consumes power only during updates, resulting in longer battery life and greater energy efficiency.
- Eye-Friendly and Heat-free: Eliminate glare, providing a comfortable viewing experience while remaining cool without generating heat.
Seamless Setup and Customization for Your ePaper Display
This ePaper display is designed to work seamlessly with any standard 24-pin driver board. We recommend the XIAO ePaper Display Board EE04.
To make things even easier, we’re introducing SenseCraft HMI—a no-code, AI-powered platform that allows you to quickly design and customize your user interface. Drag and drop elements, choose templates, or let AI generate the perfect layout for you.Get started today and create your ideal display experience with ease!
Specification
|
Parameters |
Details |
|
IC |
UC8179 |
|
Type |
Dot Matrix |
|
Size |
7.5 inch |
|
Active Area(mm) |
163.2 x 97.72 |
|
Resolution |
800 x 480 pixels |
|
Pixel Pitch(mm) |
0.204 x 0.204 |
|
Display Color |
Black, White |
|
Grayscale |
4 |
|
Partial Refresh Time |
0.34s |
|
Full Refresh Time |
3.5s |
|
Interface |
SPI |
|
Connector |
24 Pin PFC, 0.5mm Pitch |
|
Viewing Angle |
>170° |
|
Operating Voltage |
3.3V |
|
Operating Temperature |
0-50°C |
|
Driver Mode |
Support XIAO/Arduino/Micropython |
|
Drawing |
Support GUI Drawing |
|
Power Consumption |
26.4mW (typ.) |
|
Standby Consumption |
0.0165mW |
|
Outline Dimension(mm) |
170.2 x 111.2 x1.25 |
|
Weight |
3.2g |

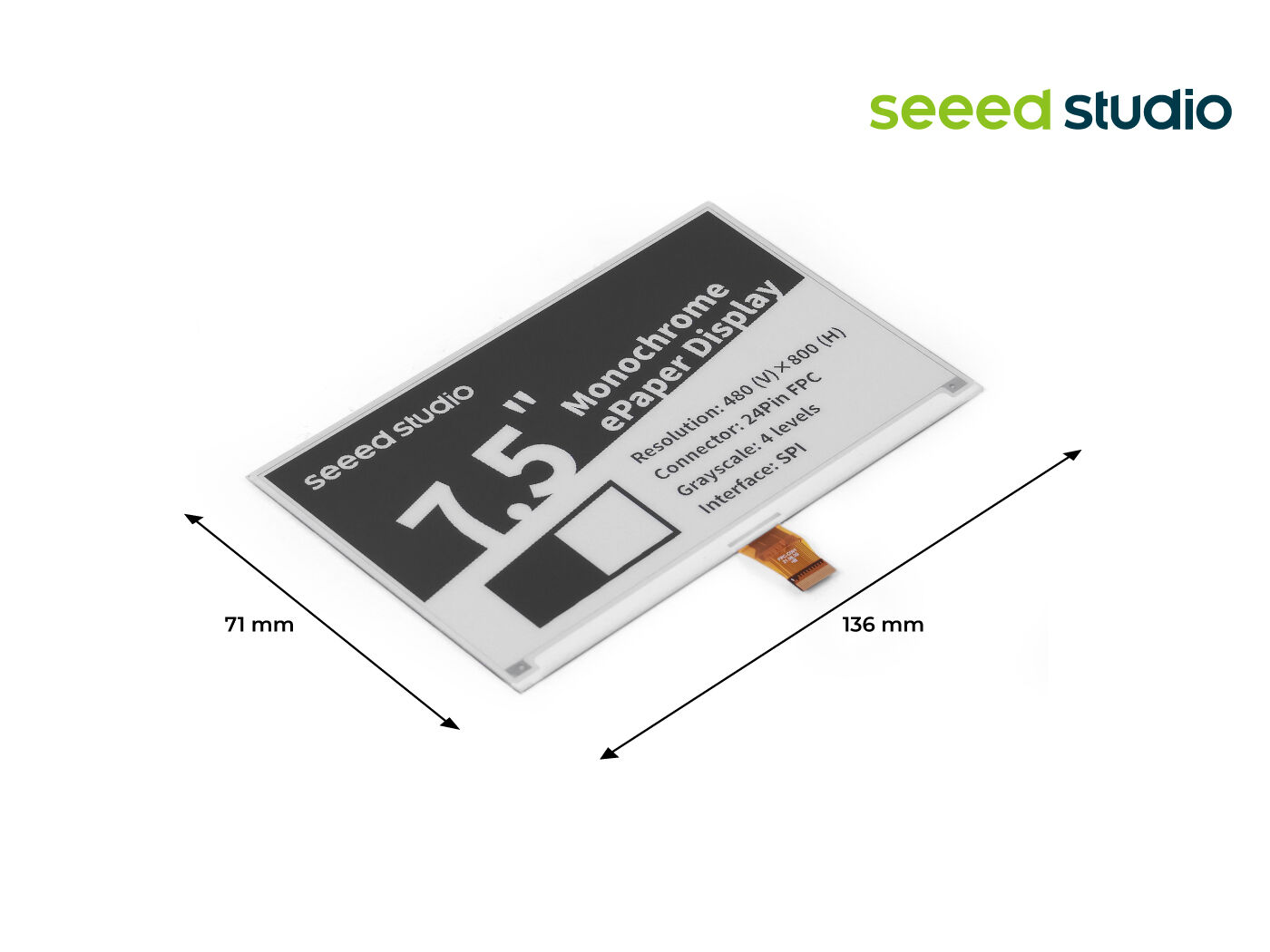

Hardware Overview
Applications
- Reading equipment
- Mobile device
- Electronic tags and price tags
- Smart Wearables
- Electronic Shelf Labels
- Smart Card
ePaper Selection Guide
|
Product |
Name |
Resolution |
Display Color |
Partial Refresh |
SenseCraft HMI |
|
|
200×200 |
|
√ |
√ |
|
|
|
250×122 |
|
√ |
√ |
|
|
|
250×122 |
|
|
√ |
|
|
|
212×104 |
|
√ |
|
|
|
|
296x128 |
|
|
|
|
|
|
296×128 |
|
√ |
√ |
|
|
|
296×128 |
|
|
√ |
|
|
|
400×300 |
|
√ |
|
|
|
|
800×480 |
|
|
√ |
|
|
|
648×480 |
|
√ |
|
|
|
|
800×480 |
|
|
√ |
|
|
|
800×480 |
|
√ |
√ |
|
|
|
1404×1872 |
|
√ |
√ |
|
|
|
1600×1200 |
|
|
√ |

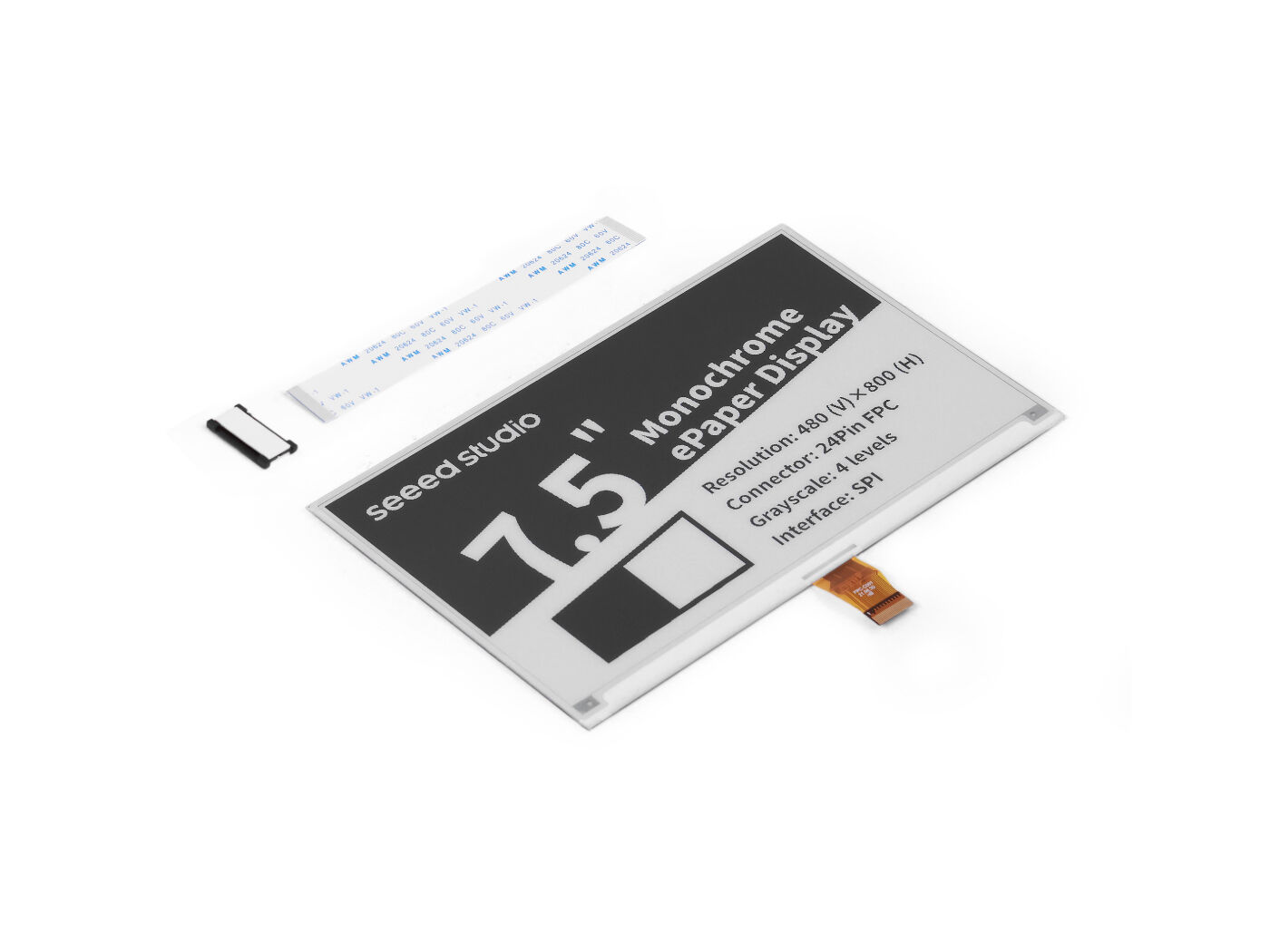

Part List
|
7.5-inch Monochrome ePaper Display |
×1 |
|
24Pin Adapter |
×1 |
|
24Pin FFC Extension Cable |
×1 |
