Description

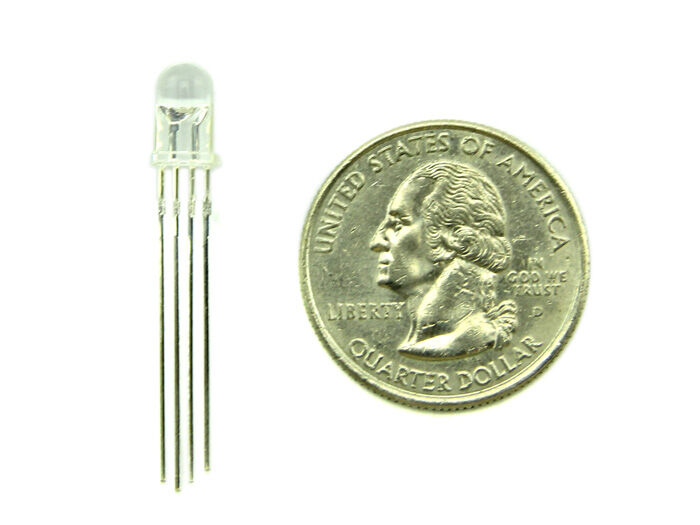

Illustration above indicating a 5mm RGB LED (Red Green Blue) with four pins. Triple output one for each color with a common cathode.
This LED can be used for three status indicators or pulse width modulates all three and gets mixed colors!
This pack contains 20 units of 5mm LED RGB – Common Cathode.
|
Chip Material |
Lens Type |
Emitting |
Forward Voltage(V) |
Dominant Wavelength(nm) |
Luminous Intensity(mcd) |
Reverse Current(uA) |
Viewing Angel(deg) |
|
InGaN |
Water Clear |
Red |
1.8/2.5 |
615/645 |
200/600 |
10 |
±60 |
|
InGaN |
Water Clear |
Green |
2.8/4.0 |
455/480 |
200/400 |
10 |
±60 |
|
InGaN |
Water Clear |
Blue |
2.8/4.0 |
500/540 |
300/800 |
10 |
±60 |
|
IF=20mA |
IF=20mA |
IF=20mA |
VR=5V |
IF=20mA |
Note:
Forward Voltage (RGB): (2.0, 3.2, 3.2) V
Luminosity (RGB): (800, 400,900) mcd
