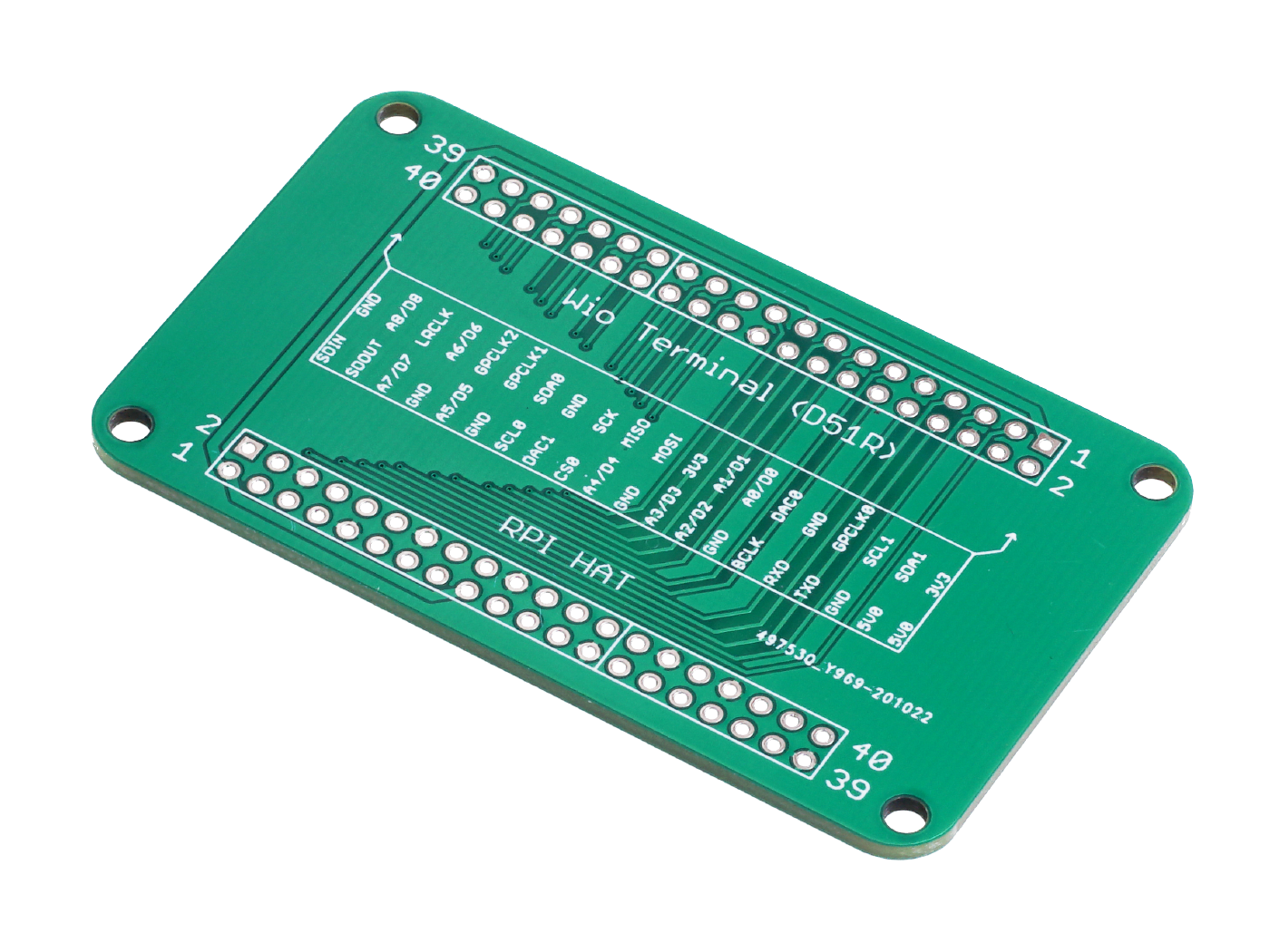

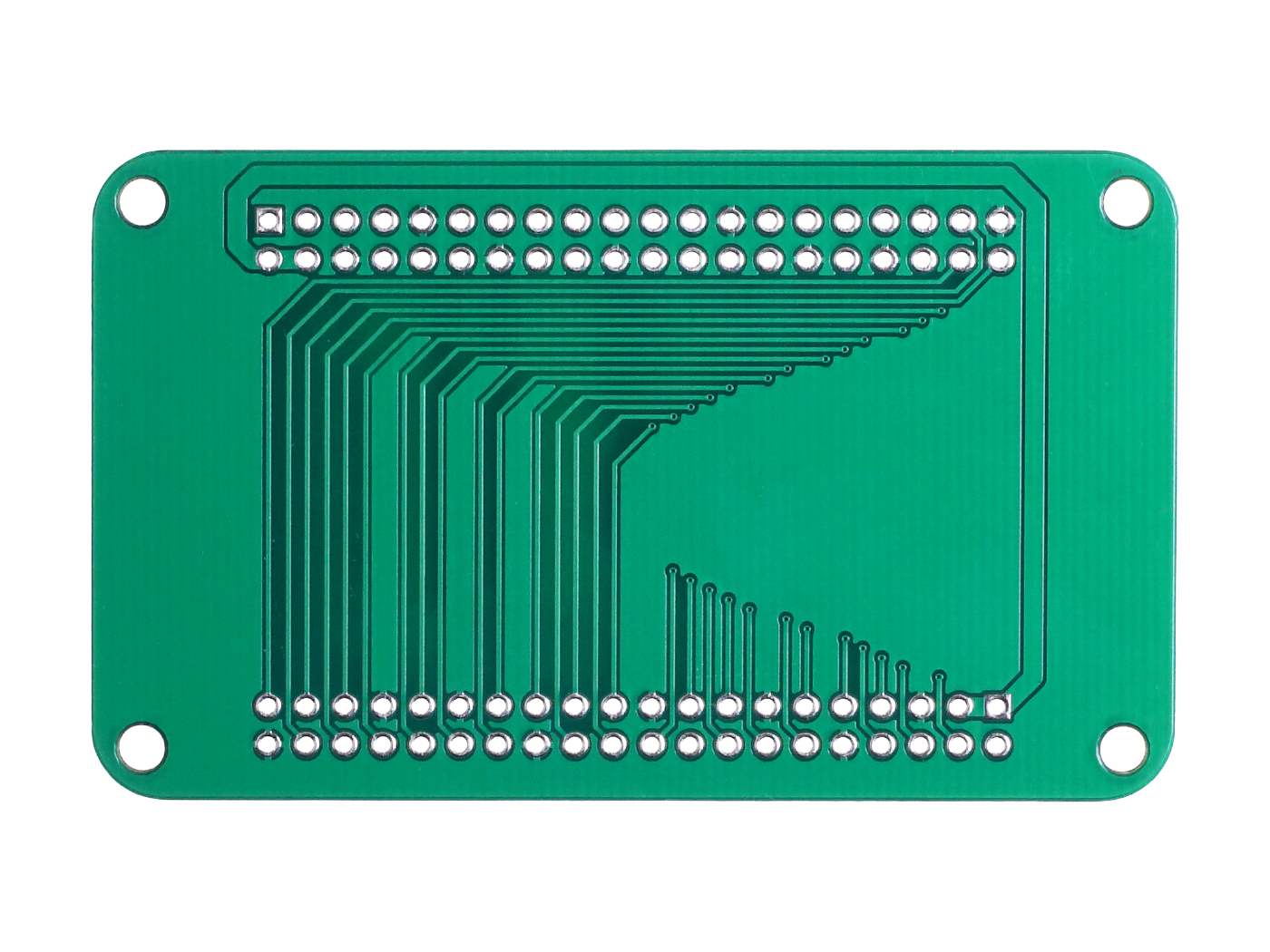

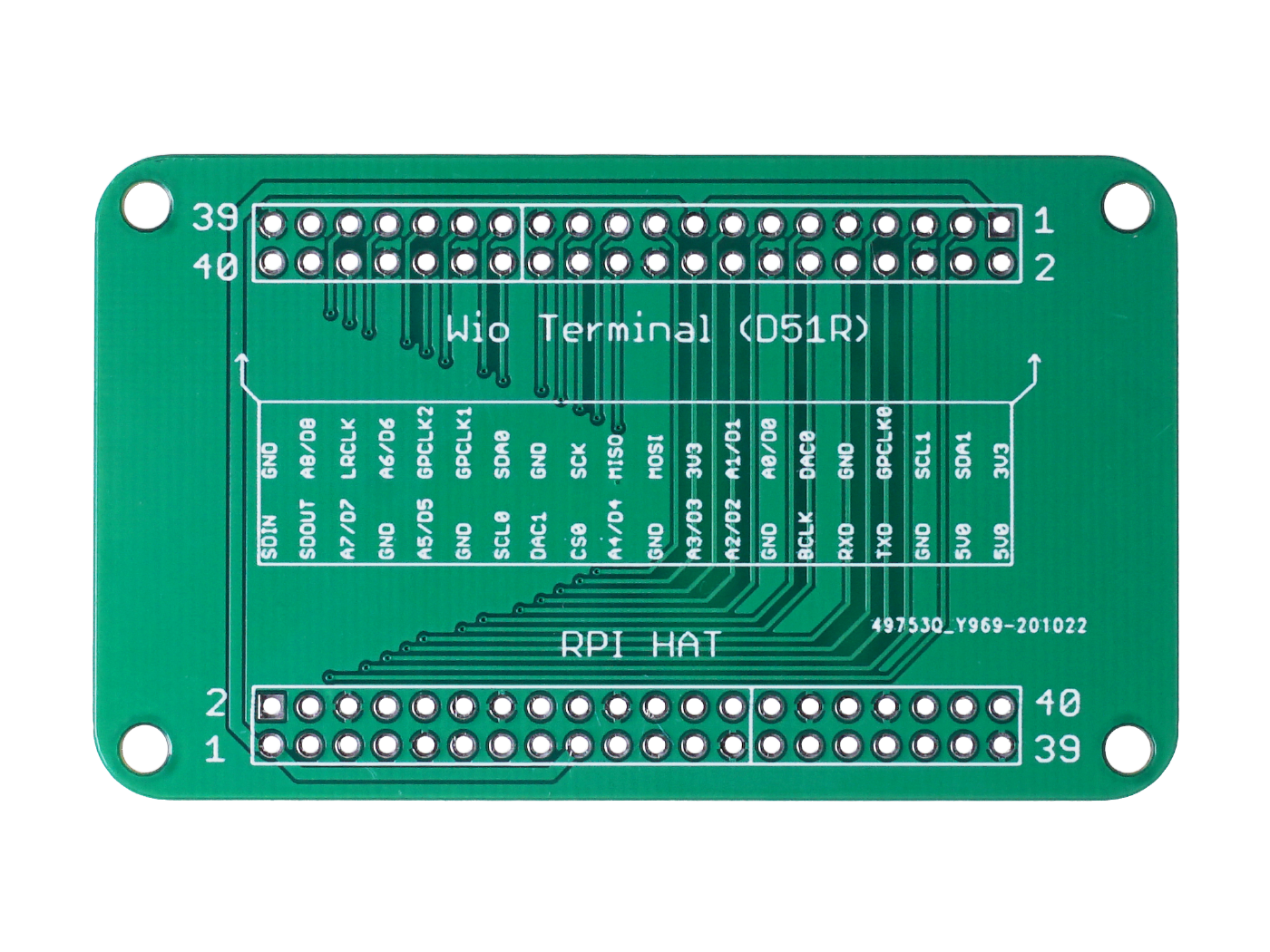

40 Pin Raspberry Pi Hat Adapter Board For Wio Terminal

Description

Features

• Adapter Board For Wio Terminal to use Raspberry Pi’s Pi Hats

Description

This is an adapter board for connecting Wio Terminal with Raspberry Pi’s Pi Hats. This makes it a lot easier for connecting them and of course better appearance. Before this simple design, you will need to use jumper wires.

Now you may use this adapter board to use the Seeed Audio library with ReSpeaker 2-Mic Raspberry Pi Hat, ENC28J60 OVERLAYS HAT for Raspberry Pi on Wio Terminal and more!

<img src="https://files.seeedstudio.com/wiki/40-pin-pi-hat-adapter-board/2.jpg" alt="Wio Terminal to use Raspberry Pi’s Pi Hats” />

Supported Raspberry Pi Hats

The  Raspberry Pi Hat Adapter Board For Wio Terminal supports the following RPI Pi Hats:

• 8-Channel 12-Bit ADC for Raspberry Pi (STM32F030)
• ReSpeaker 2-Mics Pi HAT
• 4-Channel 16-Bit ADC for Raspberry Pi (ADS1115)
• Pi RTC (DS1307)
• RS-485 Shield for Raspberry Pi
• ENC28J60 OVERLAYS HAT for Raspberry Pi
• Flick Zero – 3D Tracking & Gesture pHAT for Raspberry Pi Zero
• Raspberry Pi Motor Board v1.0

Getting Started Documents

• Using with ReSpeaker 2-Mic Raspberry Pi Hat

• Using with ENC28J60 Overlay Hat for Raspberry Pi

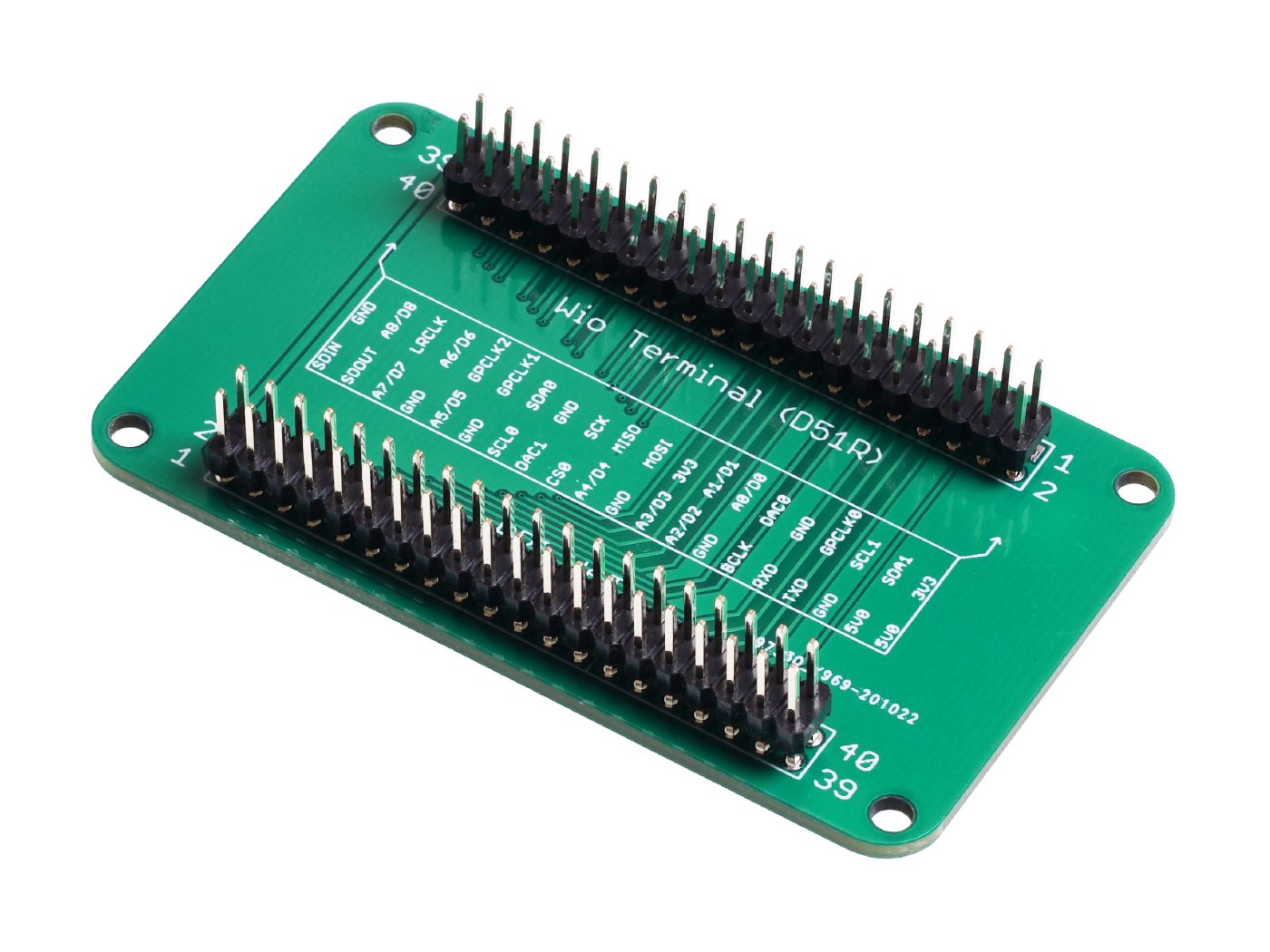

Part List

• 40 Pin Raspberry Pi Hat Adapter Board For Wio Terminal x 1
• 20 Pin Headers x 2
