4.3 LCD Cape for BeagleBone® Black – Touch Display

Description

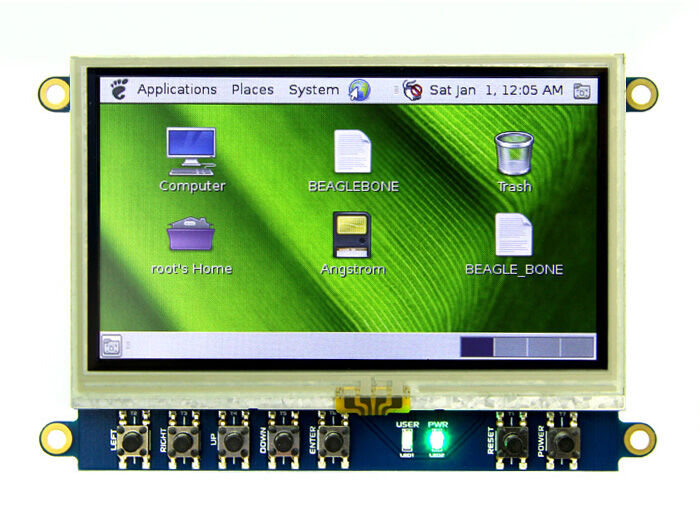

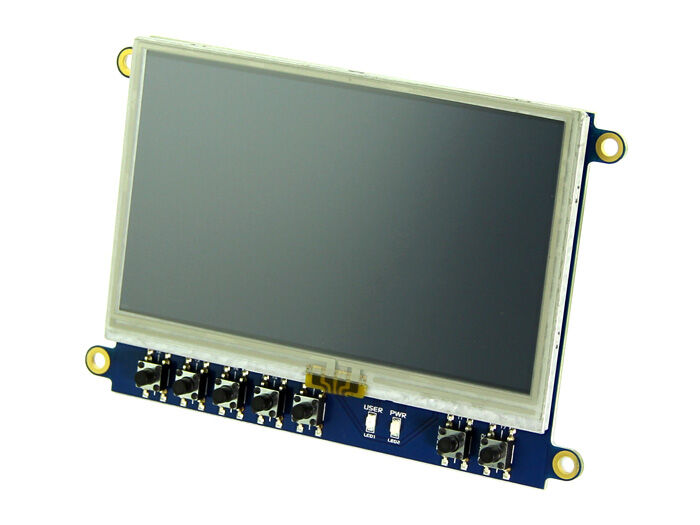

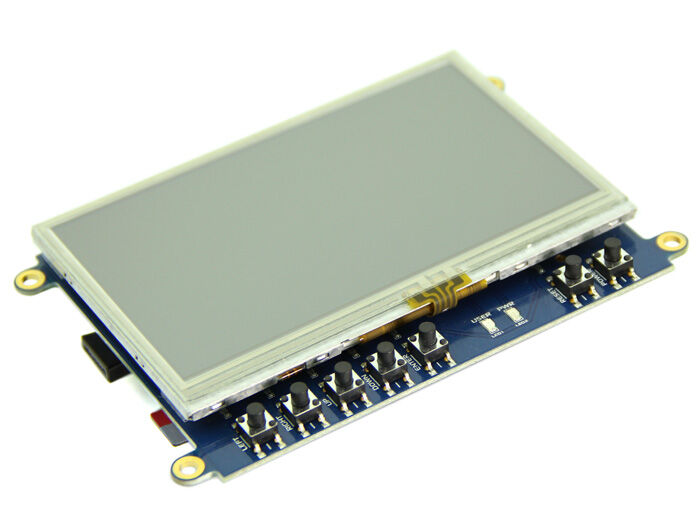

The 4DCAPE-43 is specifically designed for the BeagleBone® Black, which provides a 4.3″ display for the BeagleBone® Black for direct user interaction and information display. Available in both touch (4DCAPE-43T) and non-touch (4DCAPE-43), the CAPE conveniently features a 4.3″ TFT LCD 480×272 resolution display and seven push buttons.

The BeagleBone® Black connects directly to the back of the 4DCAPE-43, and provides everything the CAPE requires such as power and display signals. It also includes 4 mounting holes for easy panel/enclosure mounting.

Please note that the 4DCAPE-43 is designed to be the primary display for BeagleBone® Black only and cannot be programmed using 4D Systems Workshop 4 IDE.

Features

• 4.3″ TFT LCD Display, 480×272 Resolution

• 7 push buttons, including LEFT, RIGHT, UP, DOWN, ENTER, RESET and POWER

• 2 LEDs, one to indicate Power and one for User, which could be configured as required

• Fully compatible with existing drivers already written for the BeagleBone®.

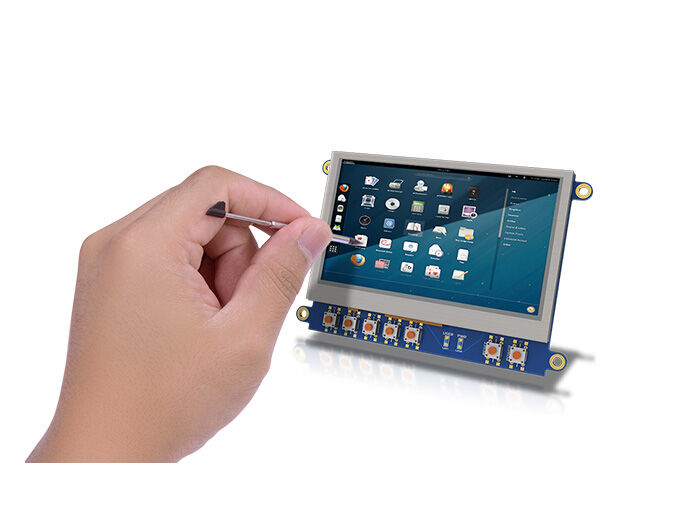

• 4DCAPE-43T (Resistive Touch version)

• 3.5mm mounting holes, enabling standard M3 screws/bolts to fasten the display to an enclosure, panel or an alternative mounting solution

• Powered directly from the BeagleBone® Black, no additional power required

Documents

• 4DCAPE-43 Datasheet

• 4DCAPE-43 3D PDF

• 4DCAPE-43 STEP Model

• 4DCAPE-43 STEP Model (This is designed for CAD, not a simple STEP viewer)

• 4DCAPE-43 Mechanical Drawing
