Description

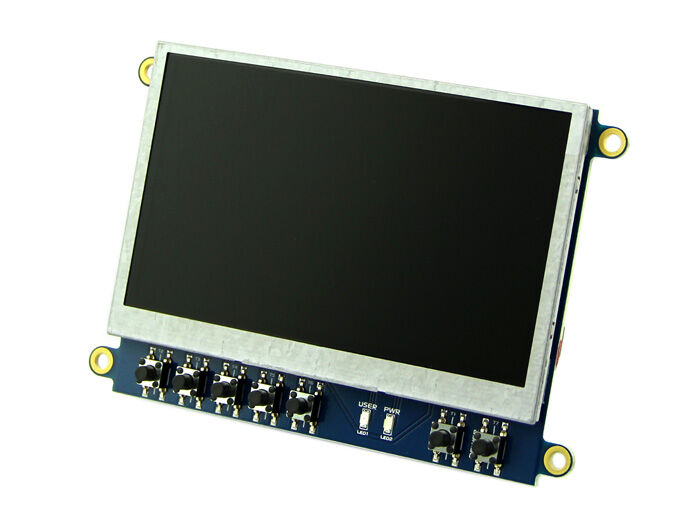

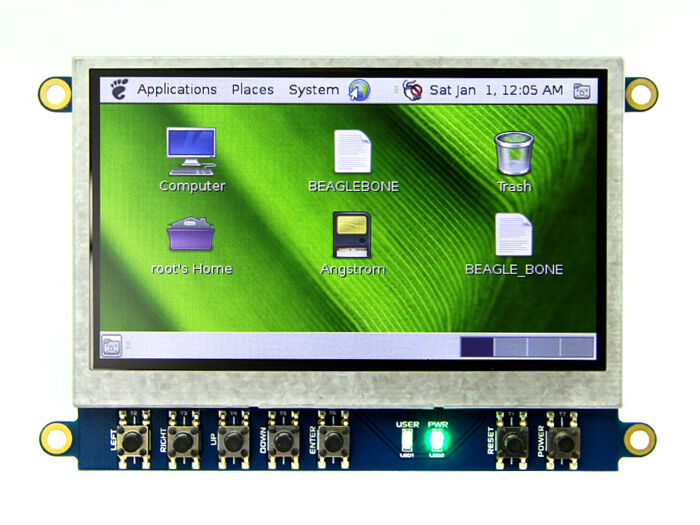

The 4DCAPE-43 is specifically designed for the BeagleBone® Black, which provides a 4.3″ display for the BeagleBone® Black for direct user interaction and information display. Available in both touch (4DCAPE-43T) and non-touch (4DCAPE-43), the CAPE conveniently features a 4.3” TFT LCD 480×272 resolution display and seven push buttons.

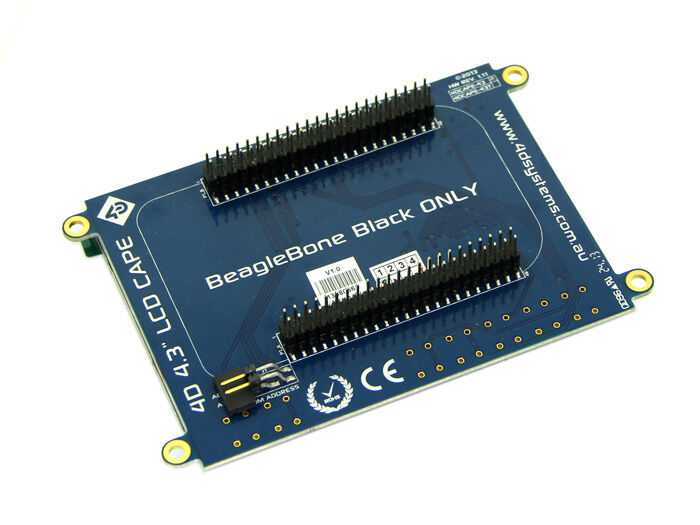

The BeagleBone® Black connects directly to the back of the 4DCAPE-43, and provides everything the CAPE requires such as power and display signals. It also includes 4 mounting holes for easy panel/enclosure mounting.
Please note that the 4DCAPE-43 is designed to be the primary display for BeagleBone® Black only and cannot be programmed using 4D Systems’ Workshop 4 IDE.
FEATURES
- 4.3″ TFT LCD Display, 480×272 Resolution

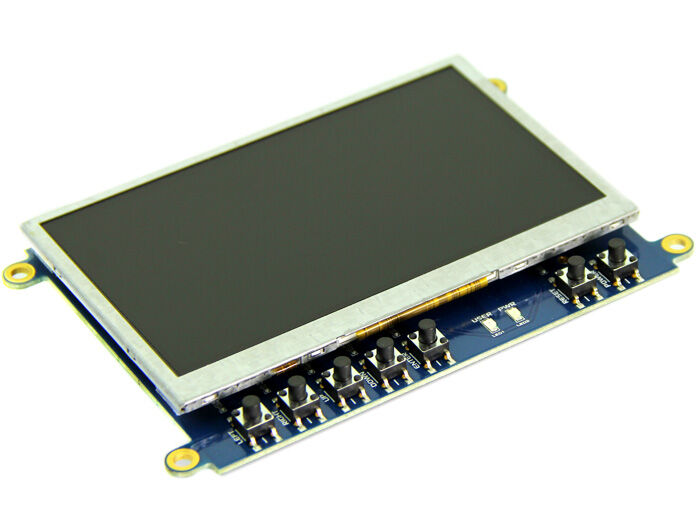

- 7 push buttons, including LEFT, RIGHT, UP, DOWN, ENTER, RESET and POWER
- 2 LEDs, one to indicate Power and one for User, which could be configured as required
- Fully compatible with existing drivers already written for the BeagleBone®.
- 4DCAPE-43 (Non Touch version)
- 3.5mm mounting holes, enabling standard M3 screws/bolts to fasten the display to an enclosure, panel or an alternative mounting solution
- Powered directly from the BeagleBone® Black, no additional power required
DOCUMENTS
- 4DCAPE-43 Datasheet
- 4DCAPE-43 3D PDF
- 4DCAPE-43 STEP Model
- 4DCAPE-43 STEP Model(This is designed for CAD, not a simple STEP viewer)
- 4DCAPE-43 Mechanical Drawing
