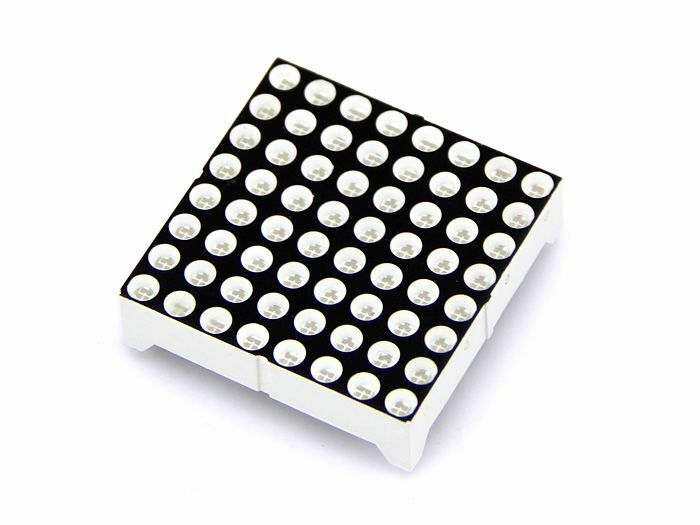

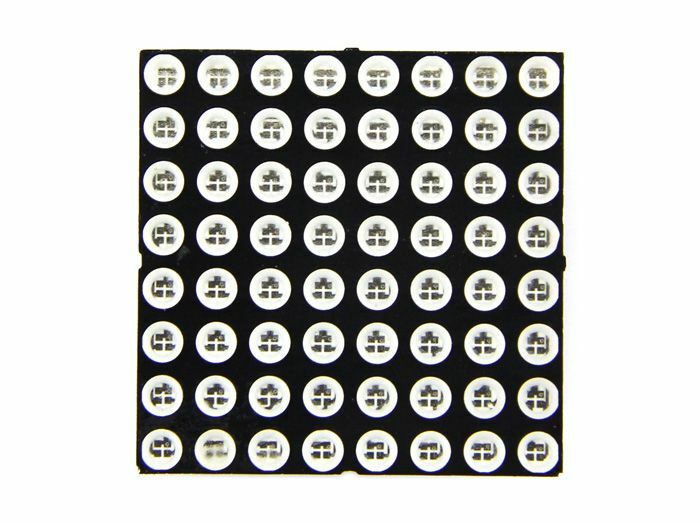

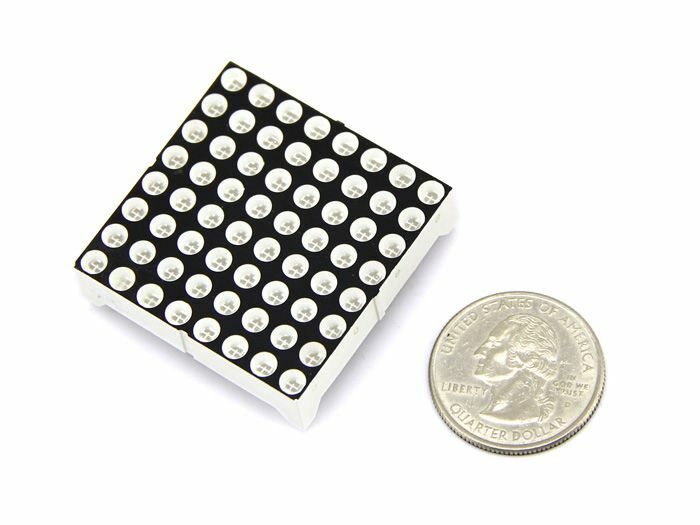

38mm 8*8 square matrix LED matched with Grove- Red Common Anode

Description

LED Matrix is low cost and usually used to display simple numbers and images. This is a 38mm 8*8 square matrix LED which can be pluged in the Grove – LED Matrix Driver (It’ s the I2C based product which allows you to control the LED matrix with our prepared and easy-to-use libraries, or you can create your own library to control it to satisfy your need). The 8*8 LED Matrix can be assembled and unassembled from the driver board easily, so it is convenient to change different color LED matrix display based on your need.

Specification

– Pixel Array: 8X8

– Color: Red

– Luminous Intensity: 55mcd

– Dimension: 38mmX38mmX7mm

– Weight: 12g

– Reverse Voltage(Max): 5V

– Forward Current(Max): 20mA

– Peak Forward Current(Max): 150mA

– Operating Temperature(Max):-40~+85℃

– Storage Temperature(Max): -40~+100℃

– Lead Solder Temperature(Max): 260℃ for 3 seconds
