3.5 Inch Touch LCD for Cubieboard 1 and 2 (800×480)

Description

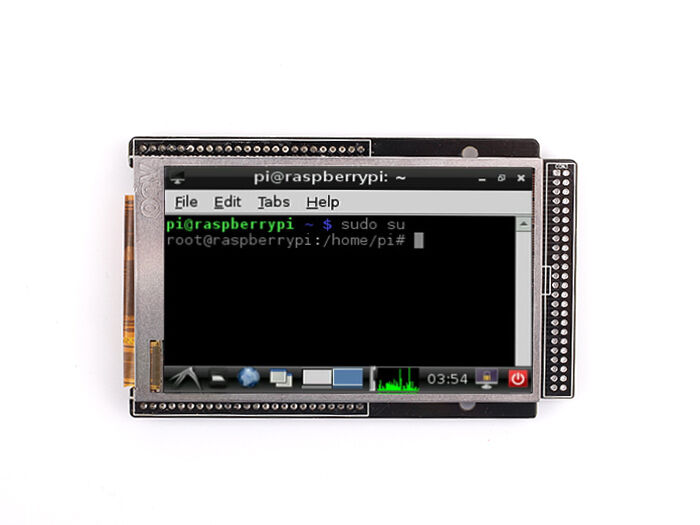

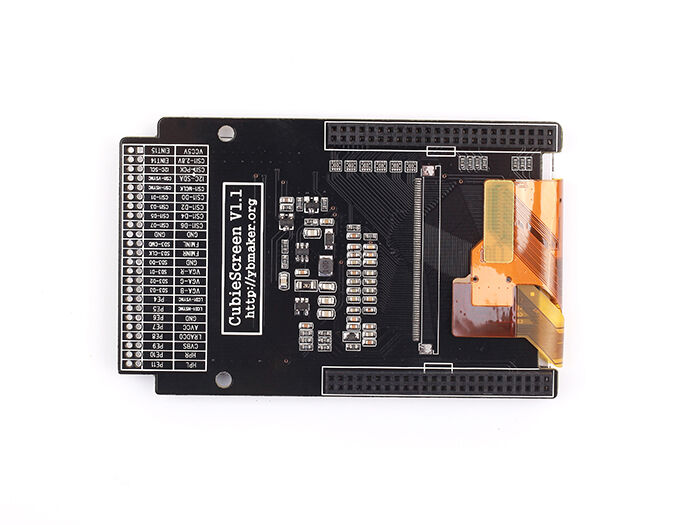

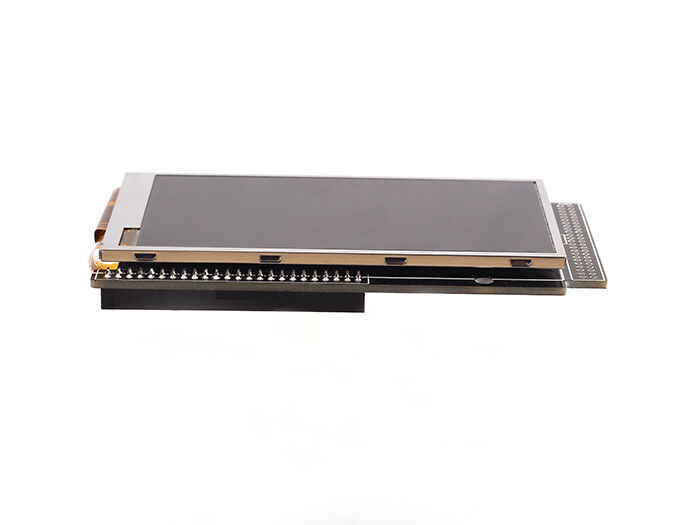

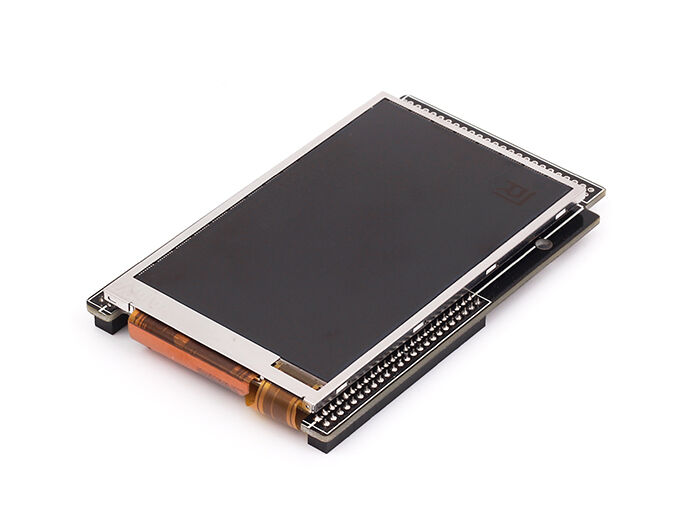

CubieScreen is a 3.5" TFT (800 * 480 dots) with capacitive touch screen ,It works on the cubieboard1 or cubieboard2 that run Linux and Android. Plugs into your cubieboard directly, easy to use,without the need for a cable or extra power supply.the LCD interface is 24bits RGB,display frame rate is 60fps.CubieScreen provides many interfaces such as Camera or DVB TS, SDIO, CVBS output, Audio ADC and GPIOs.

SPECIFICATION

Display construction: 800×480

Touch Screen: Capacitive

LCD Interface: 24 bits RGB

Display Frame rate: 60 fps

Support cubieboard 1 and cubieboard 2

Support Android 4.2 TV SDK, Linux-sunxi, Lubuntu

Support Xstroke handwriting

Size(mm): 95×60×12

For any technical support or suggestion, please kindly go to our forum.
