Description
Features：
-
Designed for Raspberry Pi Model B/B+, easy to use
-
Compatible with Raspberry Pi A+,B,B+/2.
-
Supports Raspbian system, enables your system to:
-
Play videos (supports multi formats, MP4 and so on)
-
Take photos by touching (up to 17 camera modes)
-
Support software keyboard (system interaction without keyboard/mouse)
Package Contains:
-

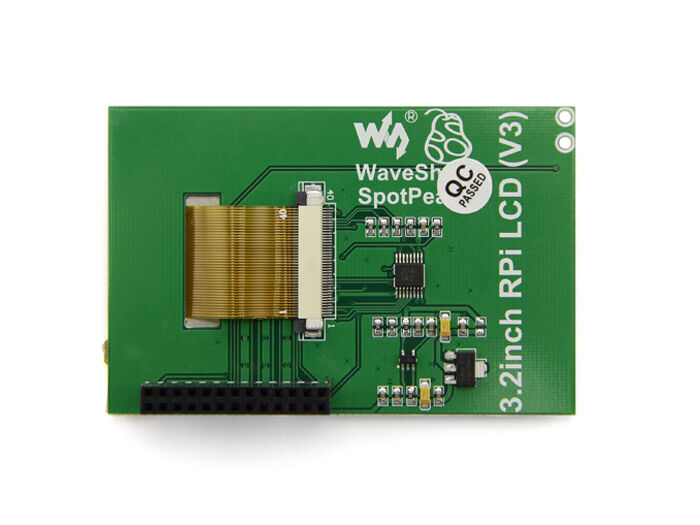

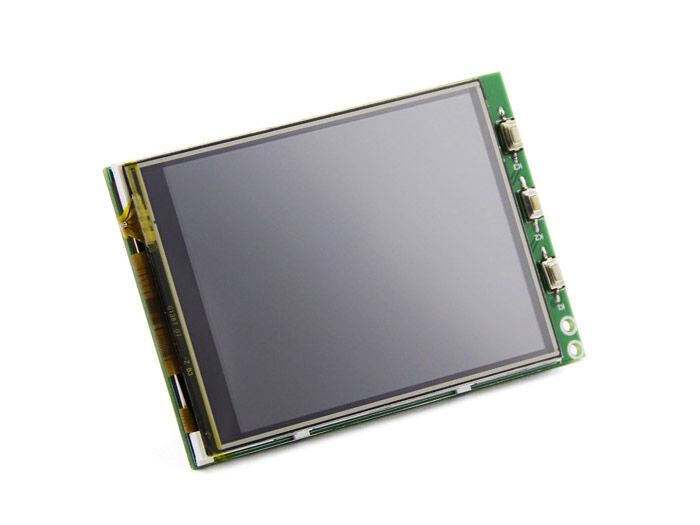

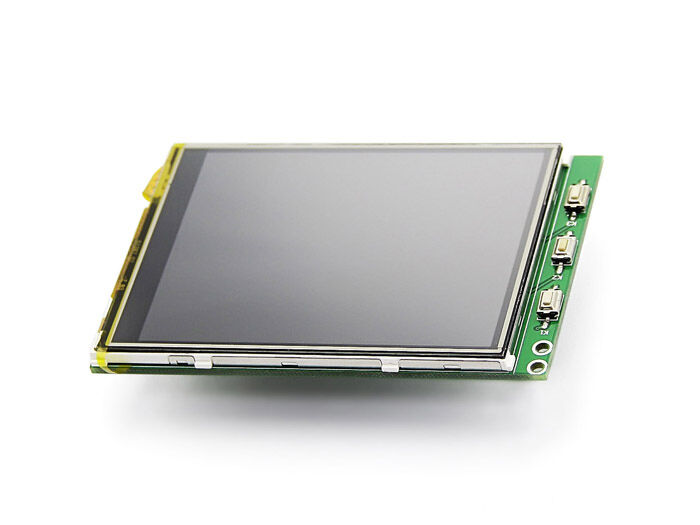

3.2inch RPi LCD (B) x 1
-
RPi screws pack (2pcs) x 1
-
DVD × 1
http://www.waveshare.net/shop/3.2inch-RPi-LCD-B.htm
interface:
| PIN NO. | SYMBOL | DESCRIPTION |
| 1, 17 | 3.3V | Power positive (3.3V power input) |
| 2,4 | 5V | Power positive (5V power input) |
| 3,5,7,8,10,22 | NC | NC |
| 6,9,14,20,25 | GND | Ground |
| 11 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
| 12 | KEY1 | Key |
| 13 | RST | Reset |
| 15 | LCD_RS | LCD instruction control, Instruction/Data Register selection |
| 16 | KEY2 | Key |
| 18 | KEY3 | Key |
| 19 | LCD_SI / TP_SI | SPI data input of LCD/Touch Panel |
| 21 | TP_SO | SPI data output of Touch Panel |
| 23 | LCD_SCK / TP_SCK | SPI clock of LCD/Touch Panel |
| 24 | LCD_CS | LCD chip selection, low active |
| 26 | TP_CS | Touch Panel chip selection, low active |
Key Parameters:
| LCD Type | TFT |
| LCD Interface | SPI |
| Touch Screen | Resistive |
| Touch Screen Controller | XPT2046 |
| Colors | 65536 |
| Backlight | LED |
| Resolution | 320*240 (Pixel) |
| Aspect Ratio | 4:3 |
| Power Consumption | TBD |
| Backlight Current | TBD |
| Operating Temp. (℃) | TBD |
Key Parameters
