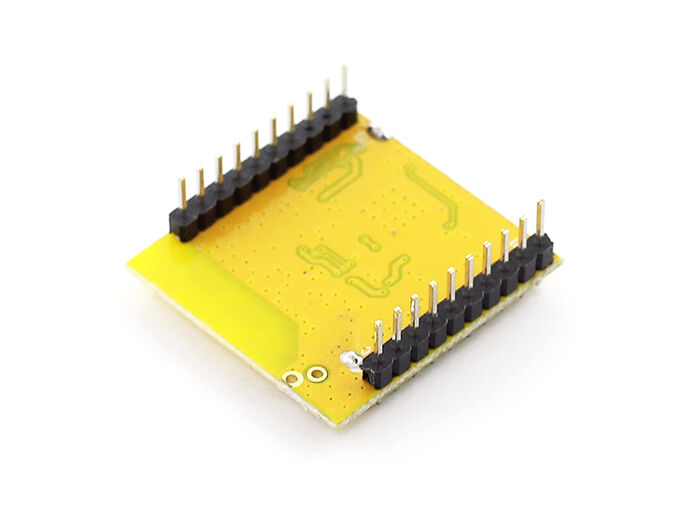

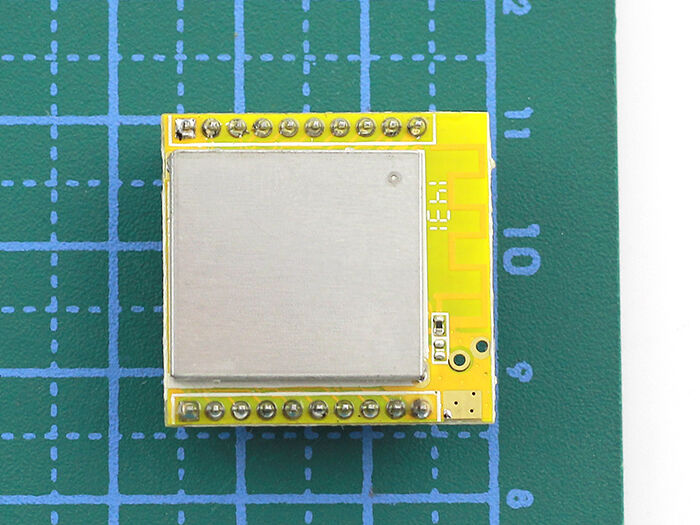

2.4GHz Micropower ZigBee Wireless module

Description

This product is a based on NXP's latest high-performance radio frequency chip design from the zigbee module with high stability, low power consumption, high cost-effective, rich internal resources, 32bit processor with high-performance embedded chip and large-capacity flash, powerful function, user-friendly for customers to do secondary development. It supports multiple network protocols, wide range of usage, develop flexibly, scalably. The module has a small size, simple structure, easy to embed the customer's product

Features：

Product feature

• Micro-power transmission, standard 20dB, divides into 3 floors, can control the transmission power by setting software.

• Working band: 2.4G-2.485GHZ, global free applications operating band.

• High noise immunity and low error rate, high-efficiency circulation interleaving error correction coding techniques and frequency hopping mechanism to improve the data burst of anti-interference and noise immunity.

• Supports multiple protocols, 2.4G IEEE802.15.4, JENNet-IP, ZigBee light link, ZigBee Smart Energy and RF4CE protocol.

• Receive sensitivity up to -104dBm, transmission distance far away.

• Module reserve enough I / O digital interfaces and analog to digital conversion interface, enabling customers to secondary development and extensions.

• Free debugging produce, wide operating voltage range: 3.3V-6V, you can customize 2.0V-3.6V.

• Module of low power consumption, the dormancy current is 0.8Ua.

• Small size, light weight, easy for clients to embed devices.

• Reserved multiple antenna interfaces, including sucker antenna, glue stick antenna, antenna and IPX ceramic antenna connector.

• Automatic network, automatically find the router, automatically form a robust mesh network topology.

Application Area

• Robust and secure low power wireless applications

• RF4CE remote control

• JenNet-IP net work

• ZigBee SE net work

• ZigBee optical link network

• Lighting and home automation

• Toys and games peripherals

• Smart energy

• The energy collection, such as power of light switch

Specification：

Electrical Parameters：

Supply Voltage：2.0V-3.6V

Emission Current：130mA @20dBM

Receive Current：27mA

Dormancy Current：0.8uA

RF Technology Parameters：

Working Frequency：2.405GHZ-2.48GHZ

Transmitted Power：20dBm

Receive Sensitivity：-104dBm

Wireless Transmission Rate：250kbps

Other Technical Parameters

Sense Rate：4800bps～115200bps(can be set）

The interface data format：8E1/8O1/8N 1( choosable）

Working Temperature：-40℃ ～ +80℃ （industrial level）

Working Humidity：10%～90% relative humidity, without condensation

Documents:

ZigBee module WT-5168CK-PA-specification
