2.0 e-Paper Panel

Description

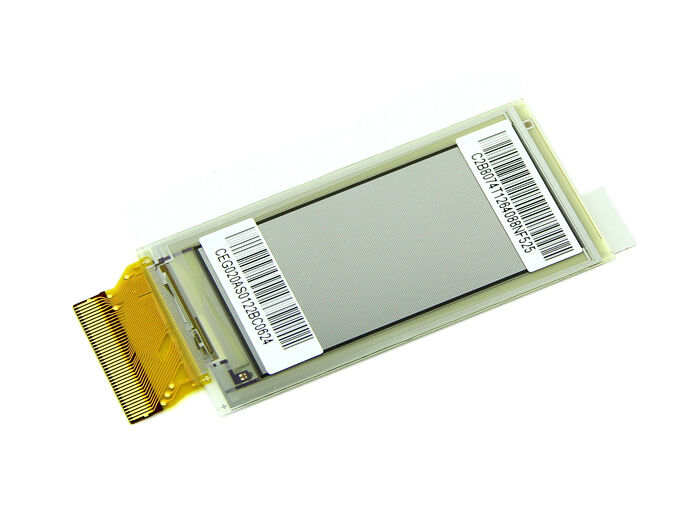

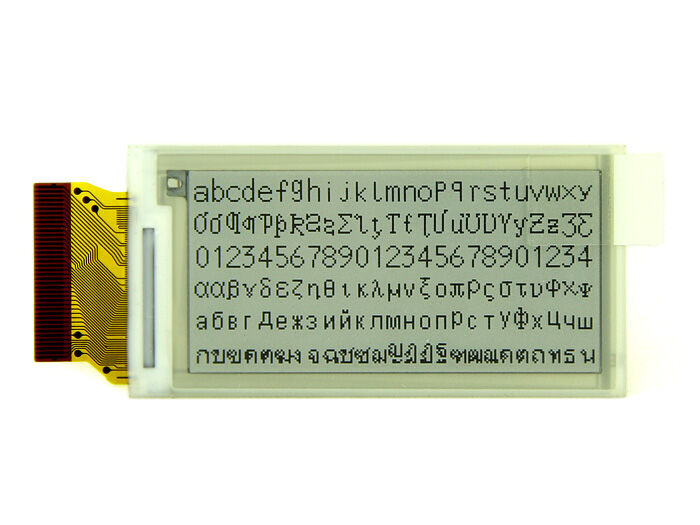

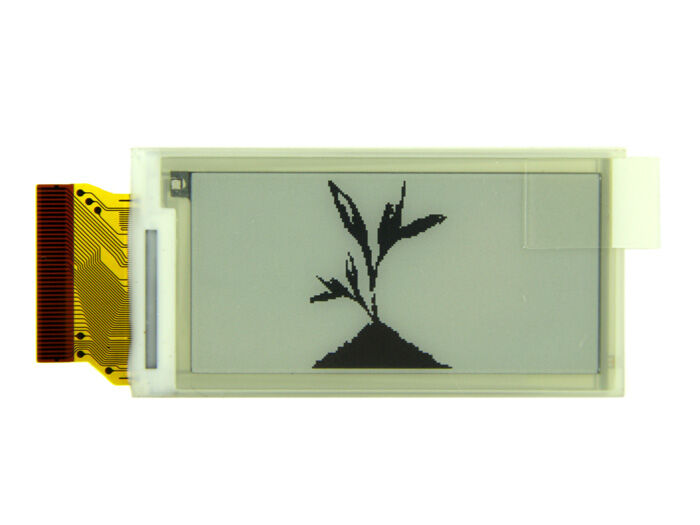

This is a 2.0 inch a-Si, active matrix TFT, Electronic Paper Display (EPD) panel. By combing the high resolution (117 dpi) of a TFT backplane and the dependability/maturity of E Ink technology, this display offers its user the freedom to display any image with excellent definition and contrast. It is ideal for mobile devices requiring slightly larger and higher-resolution displays or electronic price tags for higher-end data rich products. The small and thin form factor makes it easy to design it into a variety of applications, such as electronic shelf labels, medical devices, and mobile applications

Features

• Ultra low power consumption

• Super wide viewing angle – near 180°

• Extra thin & light

• High Resolution

• SPI interface

• RoHS compliant

Specification

• Outline(mm): 57.0(H) x 28.8(V) x 1.0(T)

• Resolution: 200 x 96

• Contrast Ratio: 7:1

• Interface: SPI

• Operation Temperature: 0~50°C

• Storage Temperature: -20~60°C

• Refresh Time(room temp.): 2 sec

• Pixel Pitch(mm): 0.229 x 0.229(111dpi)

• Pin Number: 40 pins(Connector STARCONN 089H40 or Compatible)

• Input Voltage: 3.0V

• FPC: 0.5mm pitch with stiffener

• FPL: V110
