16mm Anti-vandal Metal Push Button – Carbon Black

Description

Please read through the guide in Shenzhen 2 U before making any purchase in this catalogue.

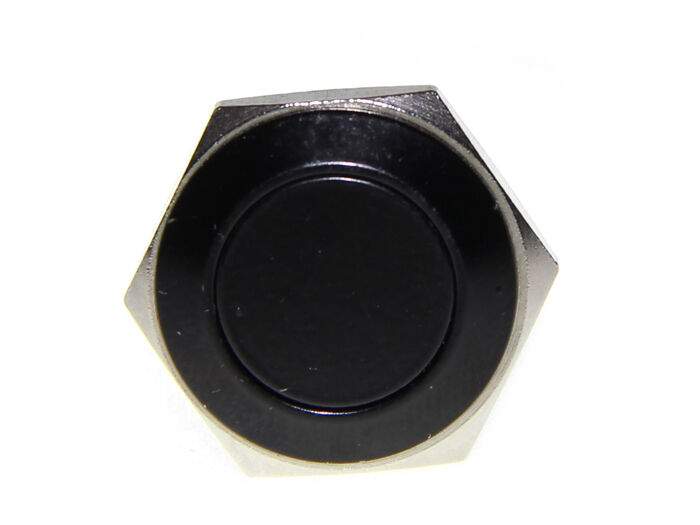

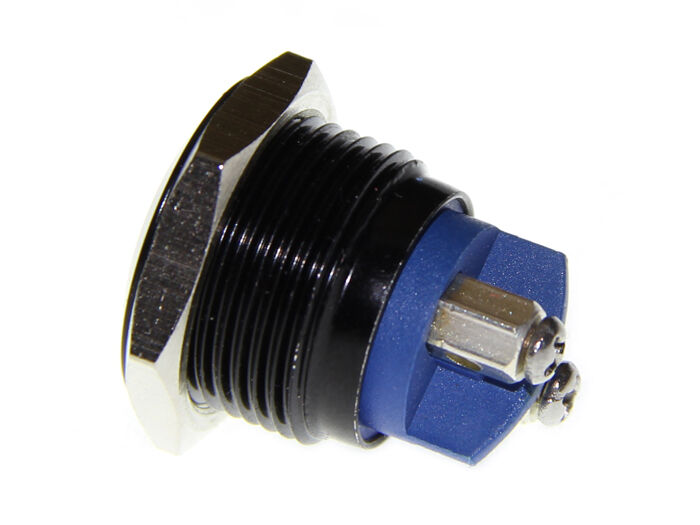

This is a refined metal push button with polished stainless surface and silver as contact material. It takes screw terminals as connectors so that it’s easy to be assembled or removed on a project without soldering.

This button comes with 6 different colors: Glory Gold, Carbon Black, Dark Green, Crimson Red, Chocolate Brown, and Royal Blue.

Features

• Shiny polished surface

• Reusable screw terminals

• Long life, 200,000+ push and bounce

Specifications

• Diameter: 16mm

• Degree of protection: IP67

• Type: Momentary

• Terminal type: screw terminal

• Maximum voltage: 250V/AC

• Contact resistance: 5MΩ(maximum)

• Life: 200,000 cycles+

• Operating temperature: -25°C – +65°C

Datasheet
