Description

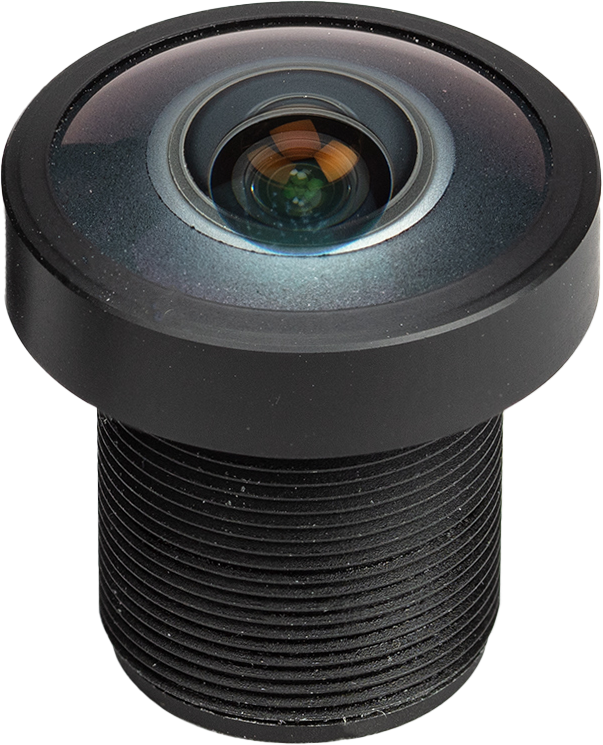

The 12MP, 2.7mm wide-angle lens for Raspberry Pi Camera Sensor is well suited for a Raspberry Pi camera sensor with M12-mount connection. It provides 12 million pixel camera capture, and a wide angle lens, designed for high quality and wide-angle image capture.
Feature
- 12MP, 2.7mm lens for Camera Sensor: Provide 5 million pixel camera capture and 2.7mm focal length
- M12-mount Connection: Support M12-mount camera sensor
- Wide-angle Lens: Offer wide-angle image capture
Description
The 12MP, 2.7mm wide-angle lens for Raspberry Pi Camera Sensor is well suited for a Raspberry Pi camera sensor with M12-mount connection. It provides 12 million pixel camera capture, and wide angle lens, designed for high quality and wide-angle image capture. It also comes with front and back covers for protection when it’s not in use.
Application
- High-quality Image Capture
- Long-focus Usage
- Wide-angle image capture
Specification
|
Focal-Length (mm) |
2.7±5%mm |
||
|
Resolution |
12 Megapixel |
||
|
Image format |
1/2.3″ |
||
|
Sensor Size |
6.28mm(H)x4.7mm(V)x7.86m(D) |
||
|
Aperture |
F2.5±5% |
||
|
Mount |
M12 |
||
|
Field Angle D*H*V( °) |
D |
185° |
|
|
H |
140° |
||
|
V |
103° |
||
|
Distortion |
-75% |
||
|
CRA |
Max14° |
||
|
Dimension (mm) |
Φ17.40×18.94m |
||
|
MBF |
3.06mm |
||
|
Operation |
Focus |
/ |
|
|
Zoom |
/ |
||
|
Iris |
Fixed |
||
|
Size Tolerance: |
0-10±0.1； 10-30±0.3； 30-120±0.5 |
||
|
Angle Tolerance: |
±2° |
||
|
Notes： Working temperature：-30℃ –+75℃。 2 、 Optical coating is very important for lens imaging. It should be handled with care to avoid scratching the coating. 3 The lens contains precision optical and mechanical components. Please avoid violent vibration during transportation and use. |
|||
