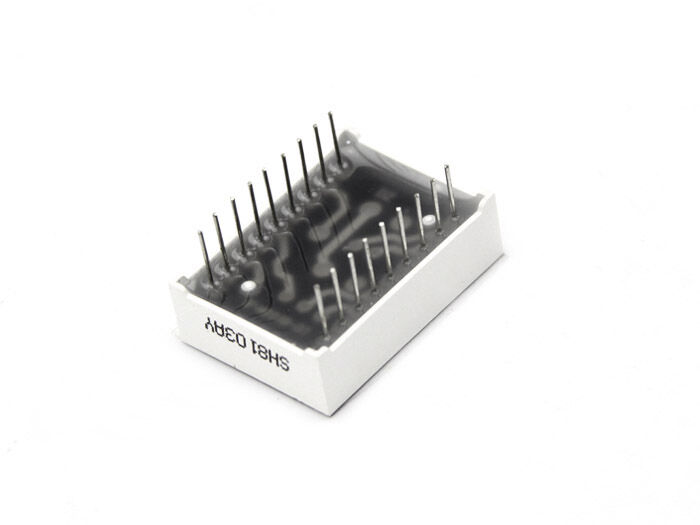

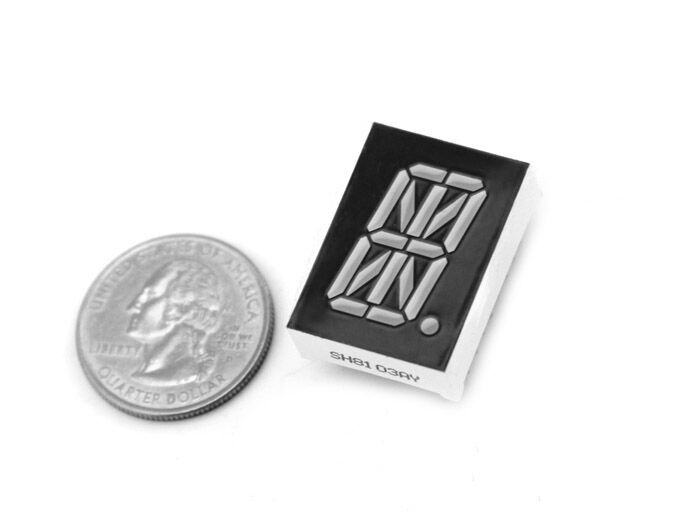

0.8 Inch 16 Segment LED Green – Common Anode

Description

This is a 16 segment common cathode LED and is green. The advantage of 16 segment is that you can not only display 1234567890, but also ABCDEFGHIJKLM.

It is compatible with bread board and can work with Arduino by adding some current limiting resistors. So, it Suitable for people who is newbie of electronic.

Note: It just a segment LED without control chip.

Features

• High Light

• low current

• low-voltage

• low energy

• Longevity

• IC-compatible

Specification

• 0.80 inch

• common port: 11

• size: 20.0 x 27.7 x 8.5mm

• Colors: green

• surface colors: Black

• Working temperature: -20~60°C

Mechanical Outline

Unspecified Tolerances is: X±0.2

Absolute Maximum Ratings

* Lead Sodering Temperature：260℃  for 3 seconds

* For  operation above 25℃,  The Ifm Ifp & Pd must be derated, the Curent derating is –0.36mA/℃ for  DC drive and  -0.86mA/℃ for Pulse drive, the power dissipation is  -0.75mW/℃. The product working current must not more than the 60% of the Ifm or Ifp according to the working temperature.

Optical-Electrical Characteristic

Storage & Soldering Condions

Store with care. Storing the units in bad condition will cause the reflector sheet and decrease it’s adhesive  power. Storage  the products  under  the condition :temperature ( 25℃ ± 10℃ ) and humidity (65℃ CRH±20℃ CRH) our recommendation.

The Soldering Temperature is 260±5℃ and Soldering Time should be less than 3 sec, and soldering iron power should be less than 30W.

The soldering point should be farther than 1.6mm from boby.
