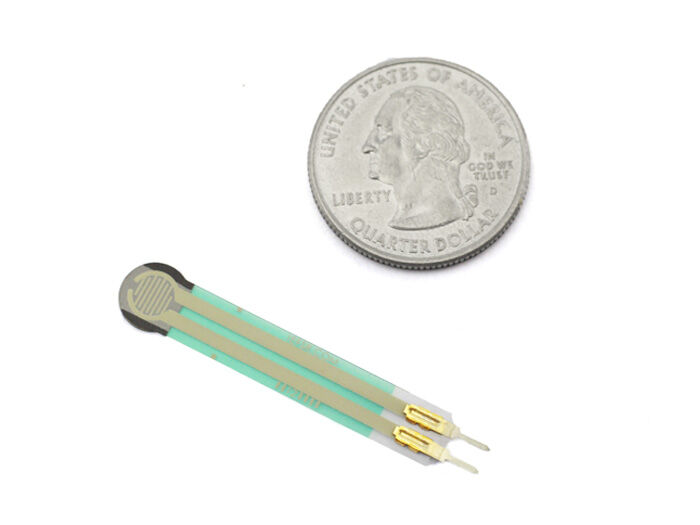

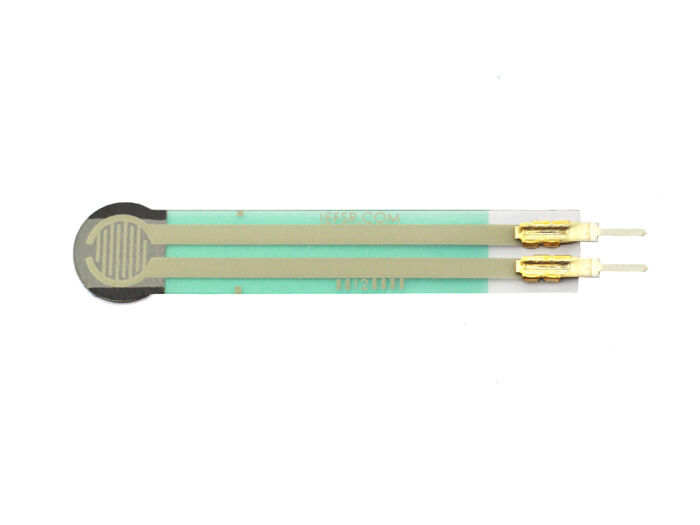

0.2 Inch Thin Film Resistor type Pressure Sensor – FSR400 A301

Description

Features：

• better linearity
• measurement of higher loads
• stable output with respect to load area

• Thickness: 0.008 in. (.203 mm)
• Length:  7.75 in. (197 mm)
•         6 in. (152 mm)
•         4 in. (102 mm)
•         2 in. (51mm)
• Width: 0.55 in. (14 mm)
• Sensing Area:  0.375 in. diameter (9.53 mm)
• Connector: 3-pin male square pin

• Linearity Error: <±3%
• Repeatability: <±2.5% of full scale
• Hysteresis:  <4.5% of full scale
• Drift: <5% per logarithmic time scale
• Response Time: <5 microseconds
• Operating Temperatures:  -40°F – 140°F(-40°C – 60°C)
• Force Ranges:  0-1 lb (4.4 N), 0-25 lb (110 N),0-100 lb (440 N)
• Temperature Sensitivity: Output variance up to 0.2% per degree F
